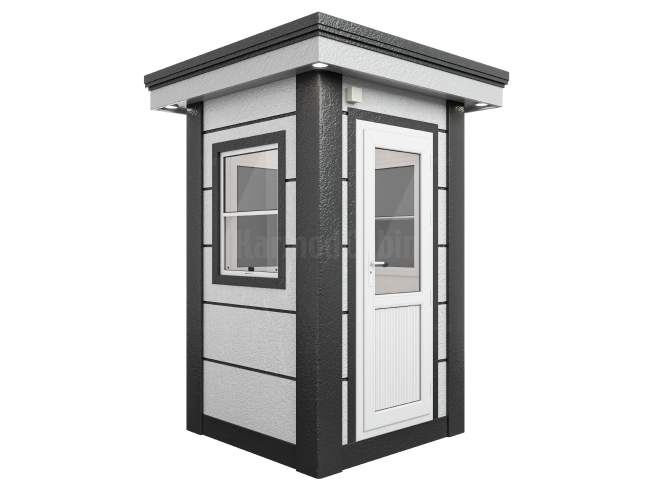

Metro City Cabin 140x140

Width 140 cm
Depth 140 cm

Add to Cart

Get a Quote

Technical specifications about the product

Building Height 140/240/265 cm
Wall Insulation Made of 40 mm thick, 14 kg/m³ polystyrene foam (EPS)
External Door The external door dimensions are 71.5 x 184.5 cm, with 4 mm thick door glass used
Roof Heat Transmission Coefficient 0.26 W/m²K
Window Made of white-colored aluminum profile frames with electrostatic powder coating.

Metal Materials ST 37 Galvanized metal profile
Cable For sockets, 3x2.5 mm; for lighting, 2x1.5 mm NYM TSE certified cables are used.
System Surface-mounted
Roof System 40 mm thick glass wool (14 kg/m³), 0.50 mm thick 27 mm * 200 mm deep Natural Trapezoidal
Glass The window glass of the cabin is made of 4 mm thick tempered glass

Wall System

The walls are built with specially designed EPS-filled sandwich panels attached to corner posts. The interior and exterior surfaces are coated with electrostatically painted RAL 9002 steel sheets. The 40 mm thick EPS insulation meets E-class fire standards, ensuring safe and effective thermal insulation.

Door

The doors are constructed from durable white PVC and fitted with specially designed hinges for seamless functionality. TSE-certified locks and custom-designed door handles ensure both security and ease of use. Measuring 71.5 x 184.5 cm, the exterior doors feature 4 mm thick glass in the upper section, providing enhanced visibility and a modern appearance.

Highest Insulation

The trapezoidal roof system is built on a steel structure for enhanced durability. Insulation is achieved using 40 mm thick glass wool and polyurethane-filled sandwich panels. A sealing gasket further improves the insulation provided by the polyurethane filling. The ceiling is finished with PVC paneling, offering both functionality and aesthetic appeal.
